Domain DM-U720AC | Mechless Receiver with Bluetooth & Wireless Android Auto / CarPlay
The Domain DM-U720AC features a 6.75" full colour touch screen display for video & photo playback which makes for ultimate entertainment in your car. Also enjoy movies & music from multiple sources and never miss a call, thanks to its built-in Bluetooth® receiver.
Features
• Wireless or wired CarPlay (what's this?)*
• Wireless or wired Android Auto (what's this?)*

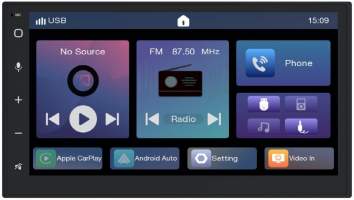

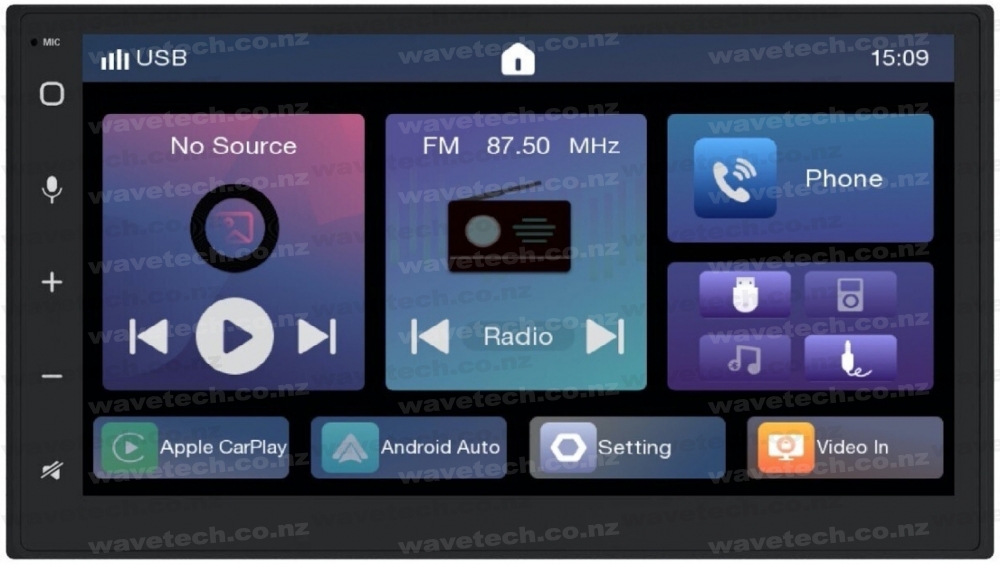

• 6.75" 800x480 Touch-Screen Display
• Mechless Unit (No CD/DVD Player)
• Built-in Bluetooth with Audio Streaming
• External Microphone Included (3.5mm)
• Rear 1.5A USB Input (Apple CarPlay / Android Auto / USB)

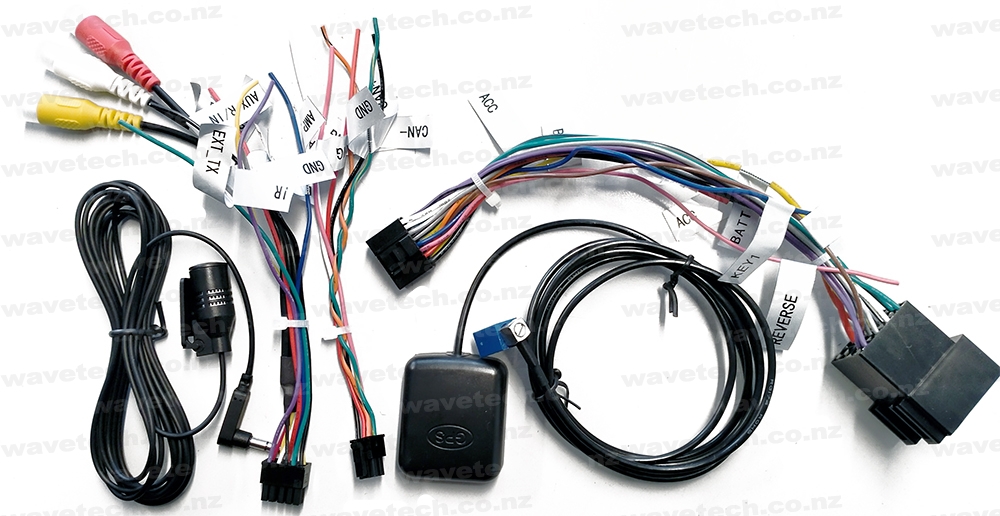

• ISO Connectors
• MP3 / WMA / MP4 / WMV / WAV / AVI / MPEG / MKV / DIVX Playback
• GPS Receiver Included (works together with phone GPS for improved accuracy)
• Rear Audio Input (use AUX2 for 3.5mm input)
• Rear Audio/Video Input
• Rear Reverse Camera Input
• Rear Video Output
• RCA Audio Output (2 Pair)
• Subwoofer RCA Output
• RDS
• Linux OS (Atlas 7 Dual Core)
• Quick Responsive Fast GUI
• Fast Reverse Camera Switching
• Rear Wired Remote Input
- with Learning Function
- see HERE for some common vehicle SWC positions
Specifications
• Power Requirement: 12V DC Negative Ground (11V-16V acceptable)
• FM Tuning Range: 87.5 - 108.0 MHz (NZ frequency)
• AM Tuning Range: 531 - 1,602 kHz (NZ frequency)
• Speaker Output: 45W x 4 (4Ω)
• Speaker Impedance: 4Ω (4-8Ω acceptable)
Size
• Standard Double Din Size
• Width: 178mm
• Height: 100mm
Install Notes
• If using ISO adapters, you will need to swap ACC & B+ wires.
The loom has bullet connectors on both wires so very easy to swap.

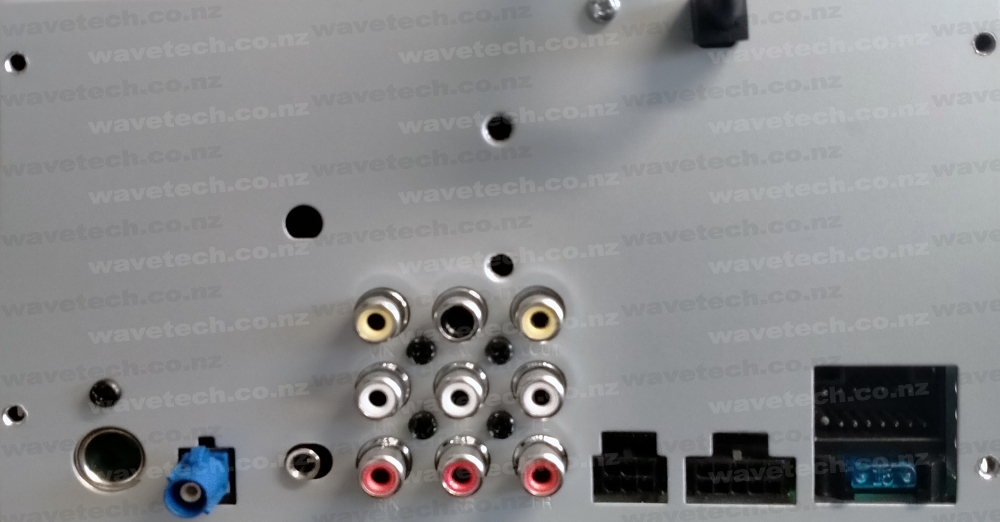

• Reverse camera input is marked VIN on back of radio (top left next to SW)
• Reverse camera can be changed from PAL to NTSC via advanced settings.
Password is 0000 and a reboot is required after changing
* Depends on phone. Not all phones supported.
Note: This unit does not include an IR remote control
|
