JVC KW-V230BTM | DVD/CD/MP3/AAC/DIVX Receiver with Front USB, Rear AUX & Bluetooth

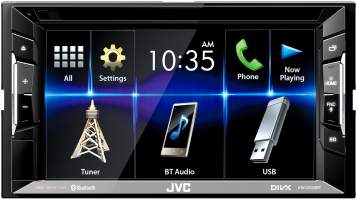

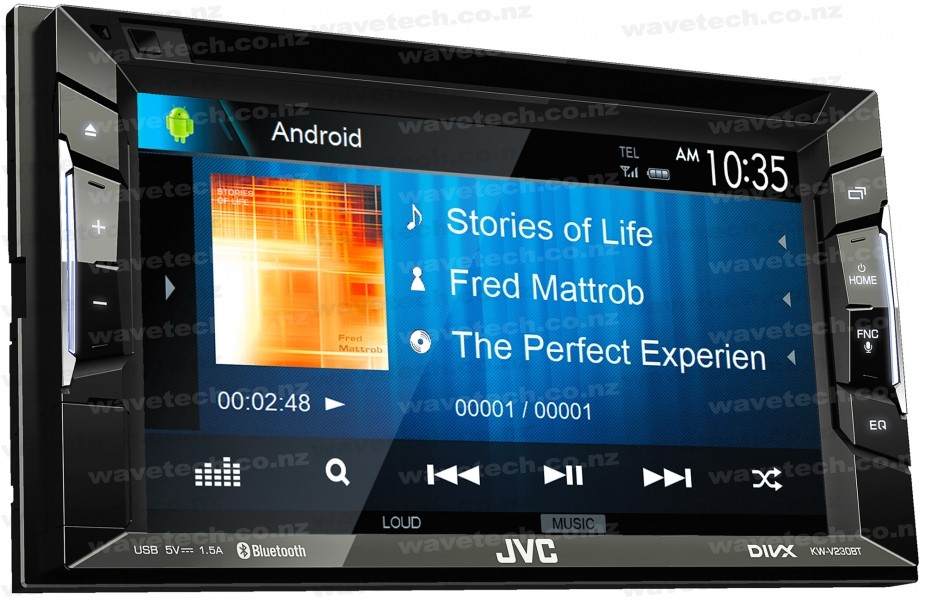

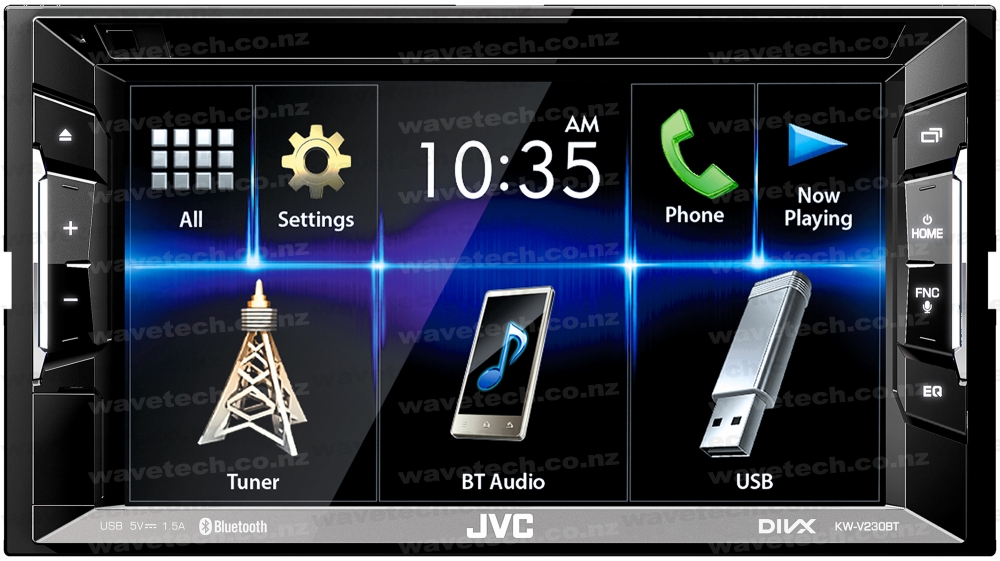

The KW-V230BTM is a 6.2" Touch Screen Monitor Bluetooth/DVD/USB Multimedia Receiver.
Features
• 6.2" WVGA (800 x 480) Touch Screen Display
• Built-in Bluetooth (with audio streaming)

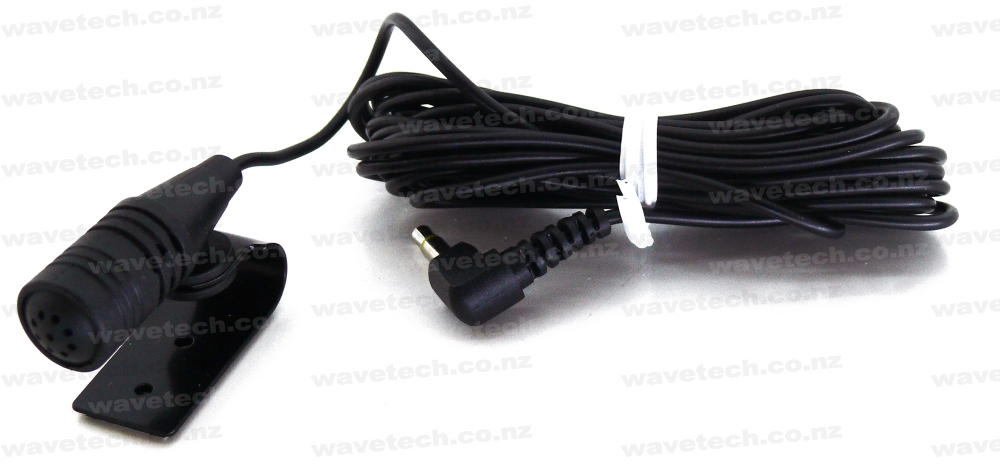

• External Microphone (3.5mm)
• Front 1.5A USB Input (iPod/iPhone/Android Compatible)
• CD/DVD Player
• 2 Phones Full-Time Connection
• Rear A/V (3.5mm) Input (Can be used as 3.5mm AUX input)
• Rear Video Output (PAL / NTSC Selectable)
• White Button Illumination
• Volume Link EQ
• Supports Android Audio Mode
• Space Enhancement
• Customisable GUI
• Sound Response
• Time Alignment
• Sound Lift
• RDS
• K2 Technology
• 9-Preset EQ
• Region Free DVD Playback
• 13-Band Graphic EQ
• MP3/WMA/WAV/AAC/JPEG/DIVX/MPEG1/2 Playback
• AM/FM Radio Tuner
• 4.0V RCA Outputs x3 (Front + Rear + Subwoofer)

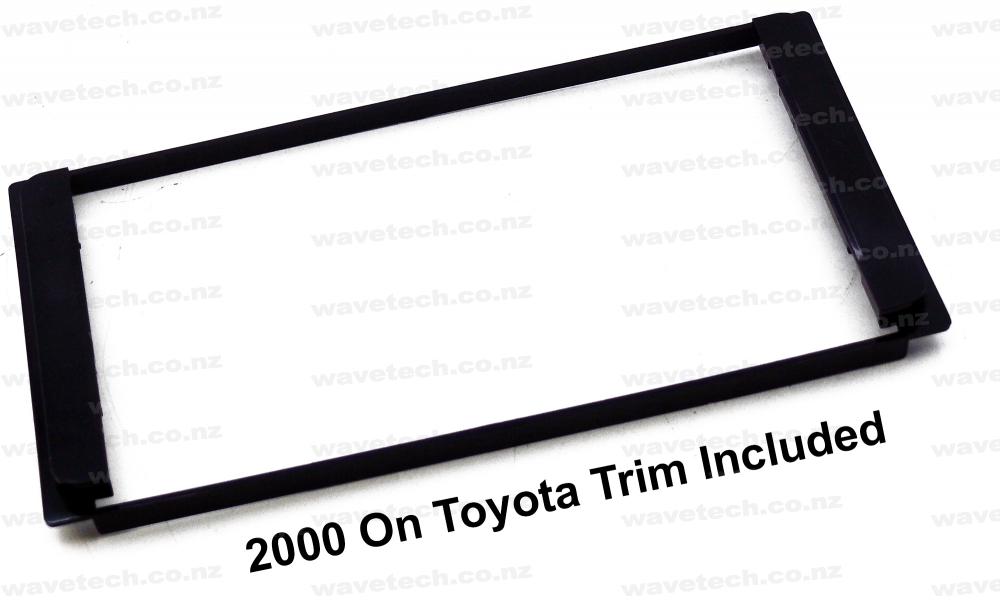

• Toyota 200mm Trim Included (See image #5)

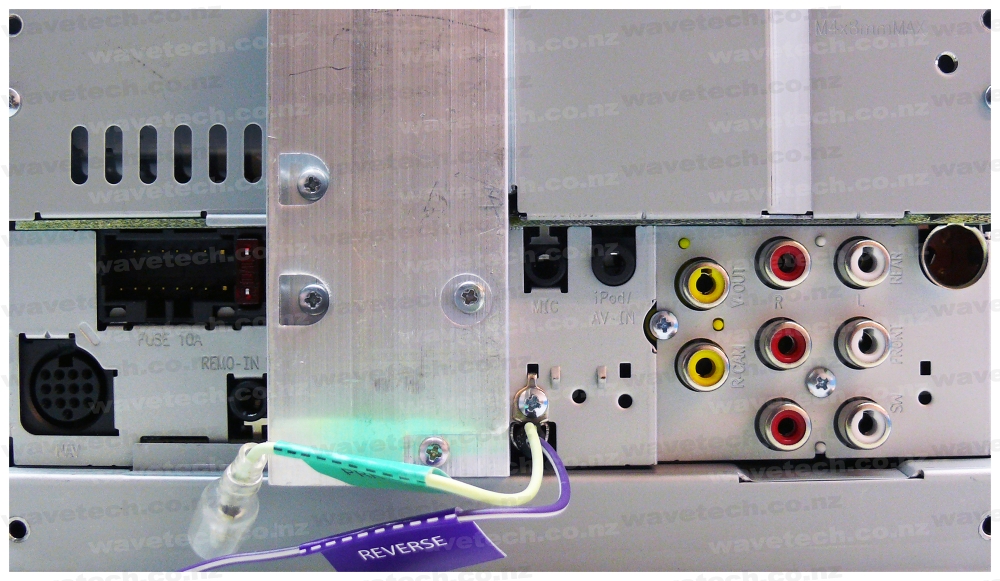

• Rear Reverse Camera Input (Compatible cameras)
- with adjustable gridlines overlay
• Rear Wired Remote Input (3.5mm)
- with Learning Function
- See HERE for some common vehicle SWC positions

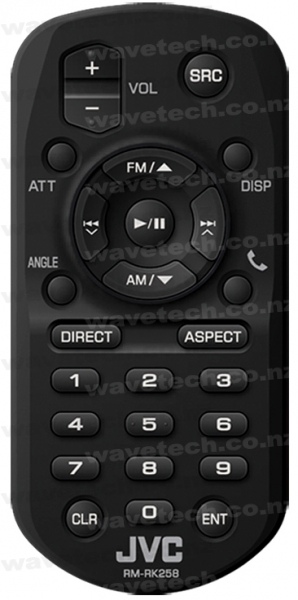

• Remote Control Included
Specifications
• Power Requirement: 12V DC Negative Ground (11V-16V acceptable)
• FM Tuning Range: 87.5 - 108.0 MHz (NZ frequency)
• AM Tuning Range: 531 - 1,602 kHz (NZ frequency)
• Speaker Output: 50W x 4 (4Ω)
• Speaker Impedance: 4Ω (4-8Ω acceptable)
Size
• Standard Double Din Size
• Width: 178mm / 200mm with Toyota Trim
• Height: 100mm
