NVS DV-2030BT | DVD/CD/MP3/DIVX Touch Screen Receiver with Bluetooth
Replacement for our popular entry level NVS DV-2020BT unit with new software, less branding and easier to use!
NEW Latest generation chipset NEW Easy and intuitive menu NEW No branding on radio (appears more factory) NEW MP3/WMA/FLAC/MPEG4/MKV/JPEG/PNG/DIVX/H264 Playback NEW Supports up-to 1920x1080 Video Resolution NEW Separate Bluetooth call volume
Features

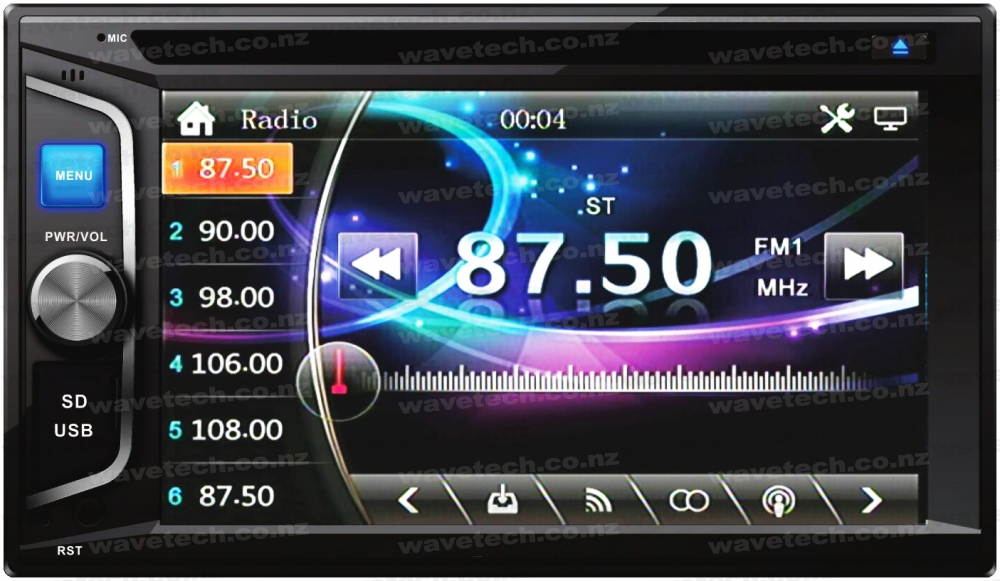

• 6.2" Touch Screen Display
• Built-in Bluetooth (with Audio Streaming)
• Built-in Microphone
• DVD/CD Player
• Front USB Input*
• Front 3.5mm AUX Input
• Front Micro SD Card Input
• Rear Reverse Camera Input
• Steering Wheel Control Learning
- see HERE for some common vehicle SWC positions
• No make / model on front of radio (appears more factory)
• Selectable Boot Logo (most car makes available)
• Rear Audio/Video RCA Inputs
• Separate Bluetooth Call Volume
• Rear Video Output
• RCA Audio Output (2 Pair)
• MP3/WMA/FLAC/MPEG4/MKV/JPEG/PNG/DIVX/H264 Playback
• Supports up-to 1920x1080 Video Resolution
• Electronic Anti-skip Protection
• Rotary Volume Control
• Loudness
• Wallpaper Adjustable (10 available)
• ID3 Tag Display
• AM/FM Tuner
• Full 12 Month Warranty

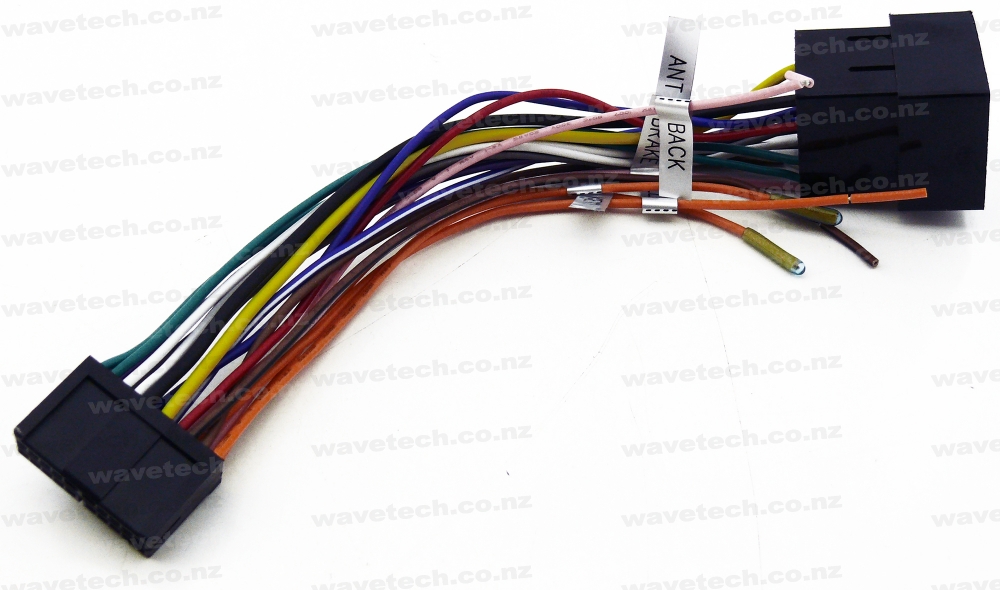

• ISO Adapter Included
• User Manual Included
• Same wiring as NVS DV-2020BT (drop in replacement)

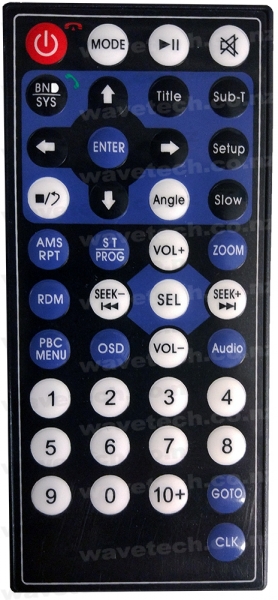

• Remote Control (CR2025 battery included)
Specifications
• Power Requirement: 12V DC Negative Ground (11V-16V acceptable)
• FM Tuning Range: 87.5 - 108.0 MHz (NZ frequency)
• AM Tuning Range: 531 - 1,602 kHz (NZ frequency)
• Speaker Output: 50W x 4 (4Ω)
• Speaker Impedance: 4Ω (4-8Ω acceptable)
Size
• Standard Double Din Size
• Width: 178mm
• Height: 100mm
* USB port is not compatible with iPod/iPhone/Android devices
However, you can still connect your device using the front AUX or via Bluetooth
Install Notes

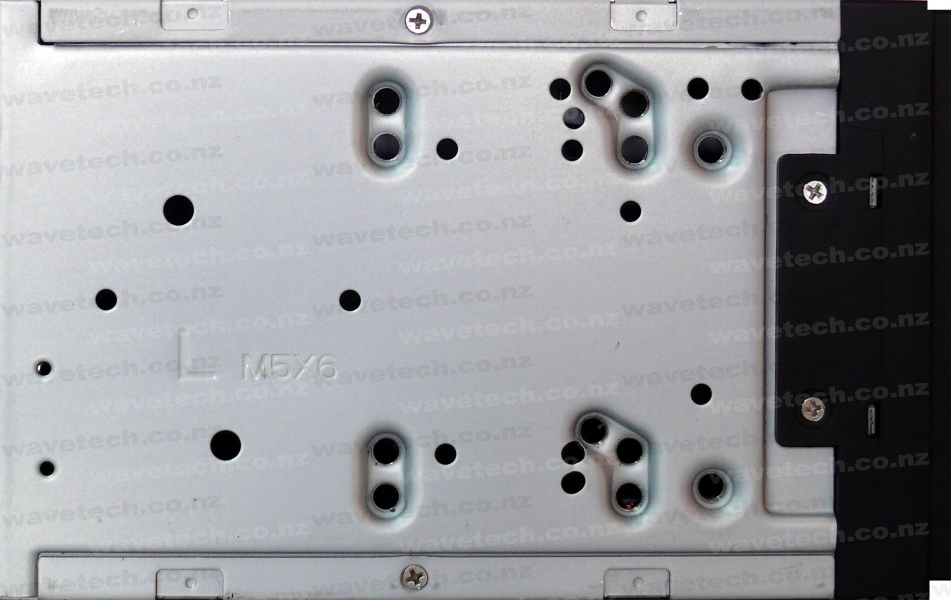

• This unit does not come with a mounting cage or trim

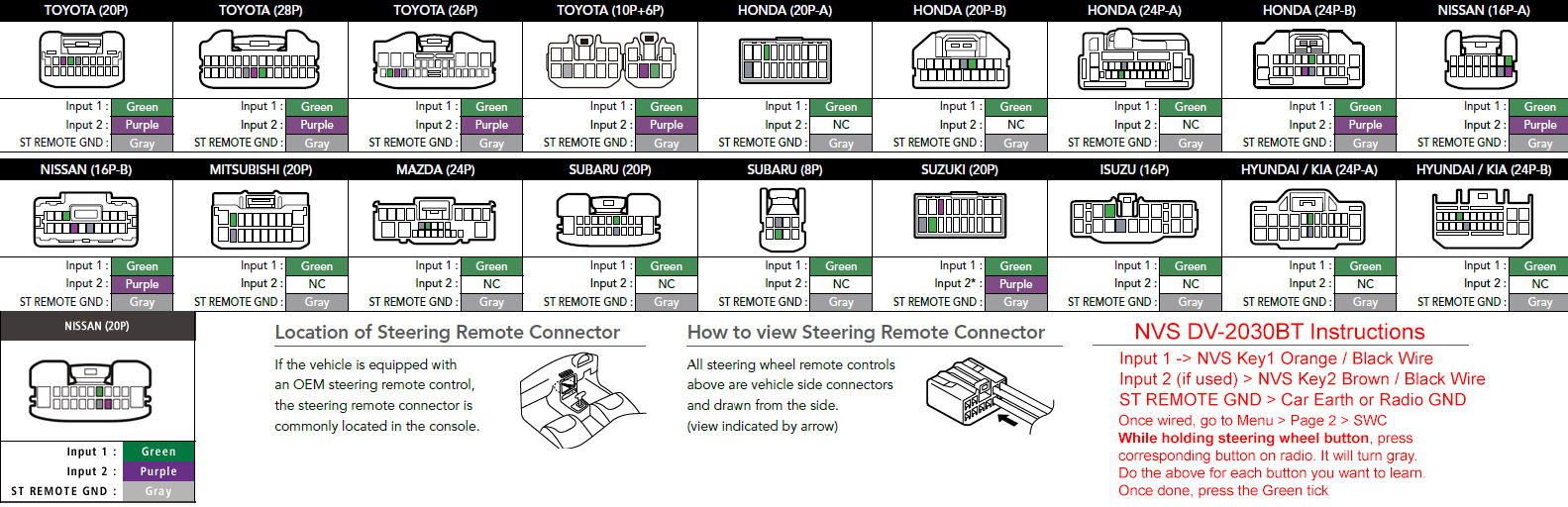

• Instructions for wiring up steering wheel controls is HERE
• Default settings password is 123456 then enter (bottom right key)
• To change Boot Logo:
- Menu 3rd Page > Factory > Adjust > Enter above password > Scroll down to Logo
• Bluetooth device name is CAR-KIT and code is 0000

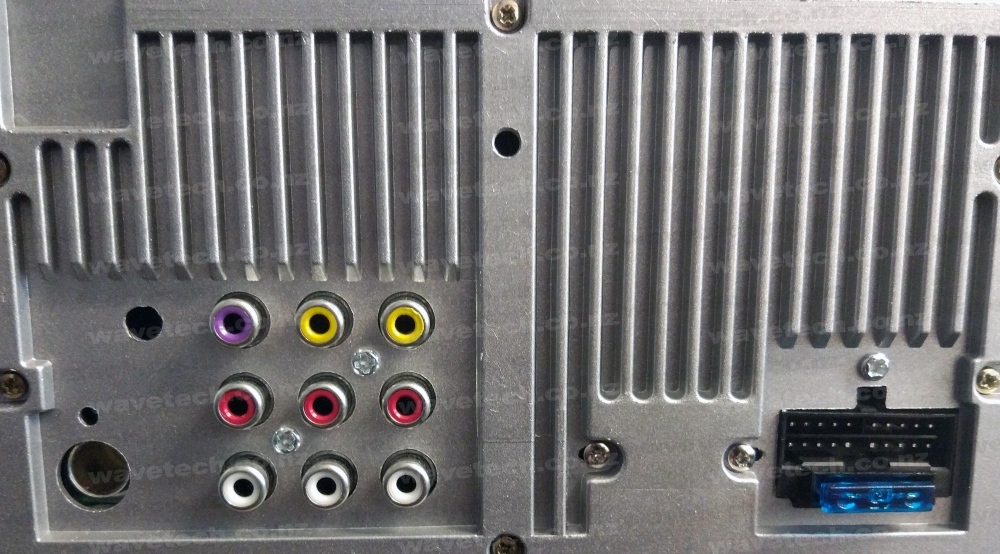

• Reverse camera input is the purple RCA connector
- Pink wire is the +12v reverse trigger
• Handbrake is the brown wire.
- Or can disable handbrake detection via Menu 2nd Page > System > Brake Detection
