Raspberry Pi 3 - Model B
Raspberry Pi 3 - Model B
Click images to enlarge
Raspberry Pi 3 | Built-in WiFi | 1.2GHZ Quad Core
You may also need..
RPI-HEATSINK
Heat Sink Set for Raspberry Pi
$3.45 incl GST

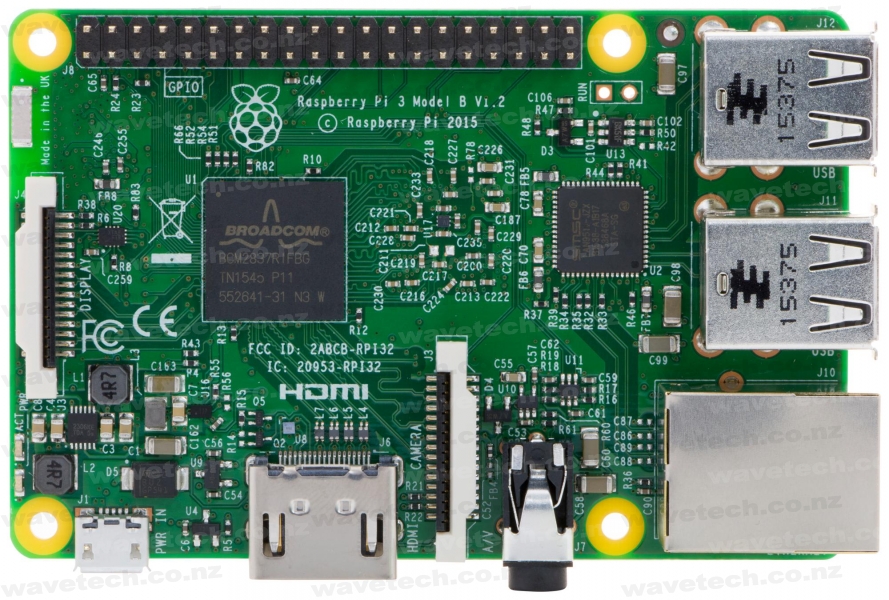

Raspberry Pi 3 Model B with built-in WiFi, 1.2GHz 64-bit Quad Core and 1GB Ram

The Raspberry Pi 3 Model B is a 1.2GHZ Quad Core 1GB Ram credit-card sized SBC (single board computer). It’s a miniature ARM-based PC which can be used for many of the things that a desktop PC does, like spreadsheets, word-processing and games. It also plays High-Definition video.

The Raspberry Pi 3 Model B board is supplied as board only, and comes without operating system, SD card, power supply, keyboard, case or cables - but these are all available from us!

Read the Raspberry Pi quick start guide HERE

Features
• 1.2GHz 64-bit ARM Cortex-A53 Quad Core Processor
• Video/Audio Out via HDMI, 4-pole 3.5mm connector, or Raw LCD (DSI)
• 4 x USB2.0 Ports with up to 1.2A output
• 10/100 Ethernet (RJ45)
• Built-in B/G/N WiFi
• Built-in Bluetooth 4.1
• 40-pin GPIO Header
• 15-pin CSI Camera Interface Connector
• Size of a credit card
• 1GB LPDDR2 RAM
• Official Board

Specifications
• Broadcom BCM2837 ARM Cortex-A53 SoC
• Broadcom VideoCore IV GPU
• Broadcom BCM43438 WiFi + Bluetooth on board
• Storage: microSD
• HDMI (rev 1.3 & 1.4)
• Minimum Power Requirements: 5V @ 700 mA via MicroUSB or GPIO Header
• Low-Level Peripherals:
     • 27 x GPIO
     • UART
     • I2C bus
     • SPI bus with two chip selects
     • +3.3V
     • +5V
     • Ground

Dimensions
• Length: 85mm
• Width: 56mm
• Height: 17mm

You may also need
• Clear / Red & White / Aluminum / Black - Raspberry Pi Case
RPI-HEATSINK - 3pc Heat Sink Set
RPI-PSU-3 - 5.1V 2.5A Power Supply
RPI-16GB-NOOBS - 16GB SD Card with NOOBS
RPI-16GB-KODI - 16GB SD Card with KODI
VCOM CG511-1.8M - 1.8M HDMI Cable
• CAT-3M - 3M CAT 5E Network Cable
RPI-KEYB-1 - Wireless keyboard / mouse



All prices in NZD and include GST
