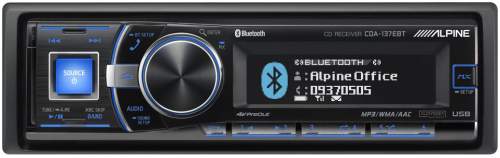

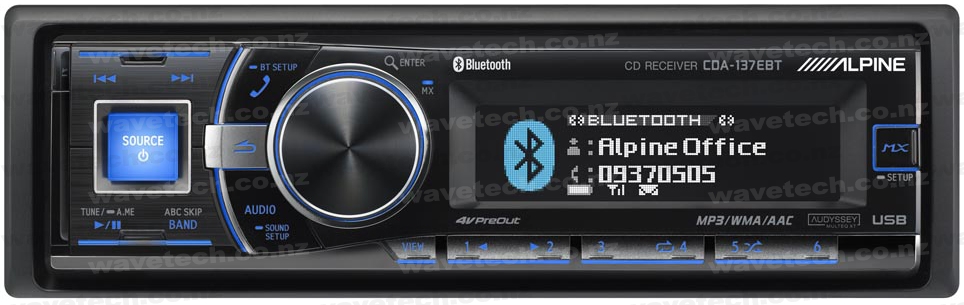

Alpine CDA-137EBT | IMPRINT CD/MP3/WMA/AAC Receiver with Bluetooth & USB
The CDA-137EBT high-performance head unit delivers benchmark sound quality thanks to Alpine's all-new CD mechanism, world-leading circuit design and cutting-edge audio engineering. Boasting advanced features including MediaXpander technology, digital time correction, 7-Band parametric EQ or 5-Band parametric EQ and high pass filter enable precise fine-tuning and sound customisation. Also, a Burr Brown 24-Bit DAC for ultra-high resolution processing and a 4-Volt preout stage achieve the best possible audio reproduction. Built-in Bluetooth Plus provides hands-free operation of a Bluetooth enabled mobile phone, and many other convenient functions like adjustable volume and text messaging alert, as well as audio streaming. It's also ready for automatic IMPRINT calibration with the PXA-H100 processor for the ultimate in sound clarity and imaging.
Features
• IMPRINT Ready with PXA-H800/H100
• 7-Band Graphic EQ / 5-Band Parametric EQ
• 6-Channel Digital Time Correction
• Built-in Parrot Bluetooth Module
• Advanced Bluetooth Functions (BT Plus)
• External Microphone
• A2DP (Audio Streaming)
• Rear USB Input (iPod/iPhone Compatible)
• Rear AUX Input Ready*
• Nokia Phone Compatible (requires KCU-230NK)
• 2 Illumination Colours Selectable (Blue/Red)
• MP3/WMA/AAC Playback (CD & USB)
• AM/FM Radio Tuner
• Detachable Face Plate

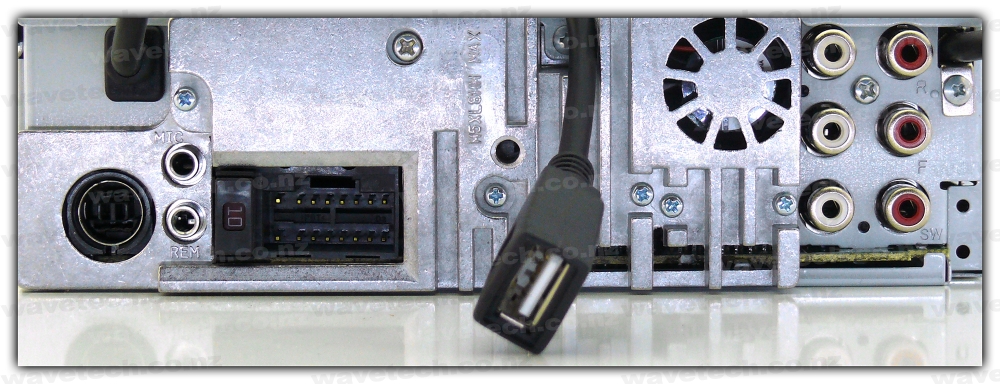

• RCA Output (3 Pair)
• High Voltage RCA Output (4V)
• Rotary Volume Control
• Rear Wired Remote Input

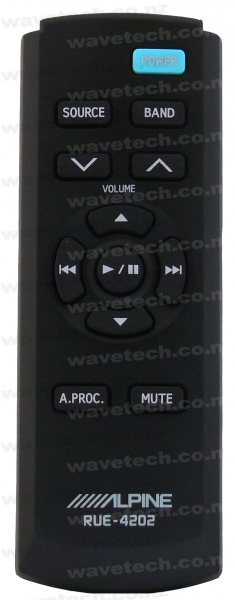

• Remote Control
Specifications
• Power Requirement: 12V DC Negative Ground (11V-16V acceptable)
• FM Tuning Range: 87.5 - 108.0 MHz (NZ frequency)
• AM Tuning Range: 531 - 1,602 kHz (NZ frequency)
• Speaker Output: 50W x 4 (4Ω)
• KTP-445 Power Pack Ready
• Speaker Impedance: 4Ω (4-8Ω acceptable)
Size
• Standard Single Din Size
• Width: 178mm
• Height: 50mm
