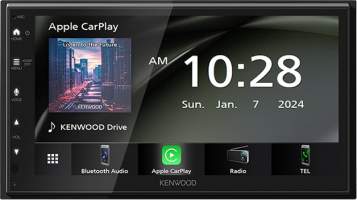

Kenwood DMX6523s | Wireless CarPlay & Android Auto with USB & Bluetooth
The Kenwood DMX6523S interfaces your smartphone via Wireless and Wired CarPlay and Android Auto with your car to enrich your driving experience.
Enjoy your favourite apps and navigate in comfort and safety with the DMX6523S and have easy access to your smartphone applications over Apple CarPlay or Android Auto.
The DMX6523S keeps you connected on the road and brings navigation apps like Apple Maps, Waze and Google Maps on to the 6.8 inch capacitive touch screen.
Stream your latest playlist, podcast or just listen to your favourite radio station, also, this AV Receiver fits in the smallest of spaces due to the short mechless depth chassis (Depth just 85.7mm)
Features

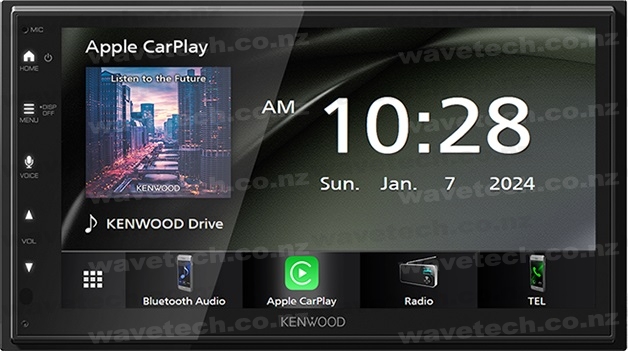

• Apple CarPlay (what's this?)*

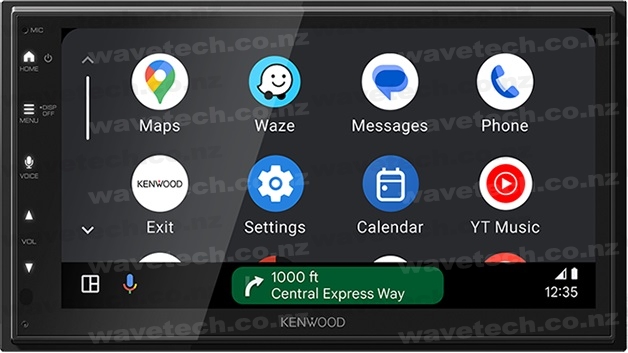

• Android Auto (what's this?)*
• Mechless Short Body (85.7mm depth) Unit (No CD/DVD Player)
• 6.8" Capacitive Touch Screen Display
• Built-in Bluetooth Ver 5.0 (with Audio Streaming) and Wi-Fi (a / n / ac standards)
• Internal Microphone (Latest firmware enables support for external microphone 3.5mm port at rear)
• Rear 2.1A max USB2.0 Input (iPhone/Android Compatible)
• Integration port for use with the iDatalink Maestro RR/RR2 (sold separately)
• Audio Playback MP3/WMA/WAV/AAC/FLAC
• Video Playback H.264/WMV/MPEG 1,2,4/AVI/MKV Video Playback
• 13-Band Graphic Equalizer and Digital Time Alignment
• Subwoofer Level and Frequency Control

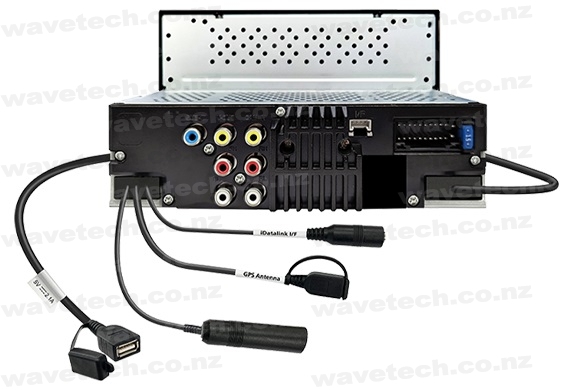

• RCA 2.5V Preouts ( Front L/R + Rear L/R + Subwoofer )
• Rear Reverse Camera Input (RCA) NTSC or PAL colour system
• Rear Video Output (RCA) 1v p-p / 75 ohms
• Steering Wheel Control (SWC) Learning
- see HERE for some common vehicle SWC positions
Specifications
• Power Requirement: 12V DC Negative Ground
• FM Tuning Range: 87.5 - 108.0 MHz (NZ frequency 50kHz stepping)
• AM Tuning Range: 531 - 1,611 kHz (NZ frequency 9kHz stepping)
• Speaker Output: 50W x 4 (4Ω)
• Speaker Impedance: 4Ω (4-8Ω acceptable)
Size
• Double Din size screen featuring short body chassis
• Width: 178mm (Without Outer Trim)
• Height: 100mm

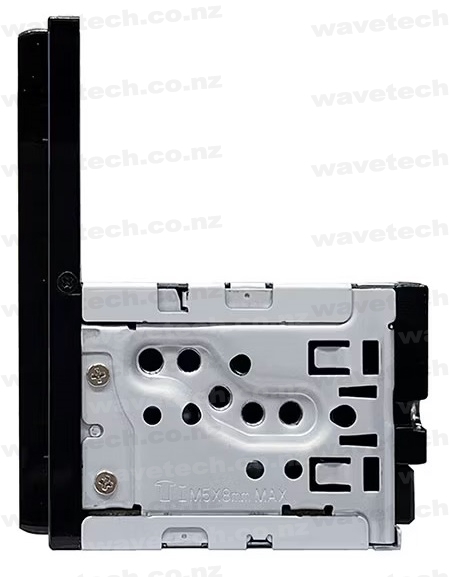

• Depth: 85.7mm (Short Body)
Note: This unit does not include a IR remote control, Mounting Cage or external microphone
* Depends on phone. Not all phones supported.
|
