Pioneer GM-6500F | 4 Channel Class A/B 760W Power Amplifier
From dramatic distinction to dramatic design, Pioneer's new GM-Series amplifiers are thrillers in every sense, pushing the limits of flexibility and functionality.

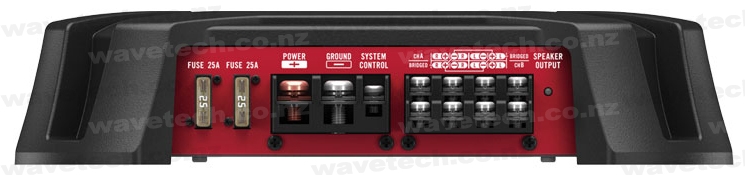

The 4-channel Pioneer GM-6500F delivers a whopping 760 watts max - plenty of juice to power your speakers. It's also got built-in low-pass/high-pass crossovers, speaker level inputs for easy connection to an OEM headunit and oversized power terminals.
Features
• 4 Channel
• Class A/B
• 4ch/3ch/2ch Configuration
• Thermal Management Control
• DC-DC PWM Power Supply

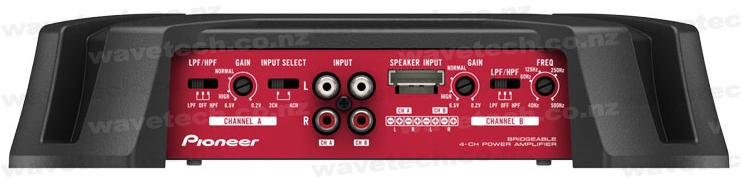

• Crossover: Variable Low-Pass/High-Pass
• Speaker-Level Inputs
• Current Protection:
- Over-Current
- Over-Voltage
- Thermal Protection
Specifications
• Total Max Power: 760W
• RMS Power:
4ch Configuration:
4 x 60W (4Ω)
4 x 85W (2Ω)
3ch Configuration:
2 x 60W (4Ω) + 1x 180W (4Ω)
2 x 85W (2Ω) + 1x 180W (4Ω)
2ch Configuration:
2 x 180W (4Ω)
