Blaupunkt Newport Beach 370 | Mechless Multimedia with Bluetooth & Dual USB

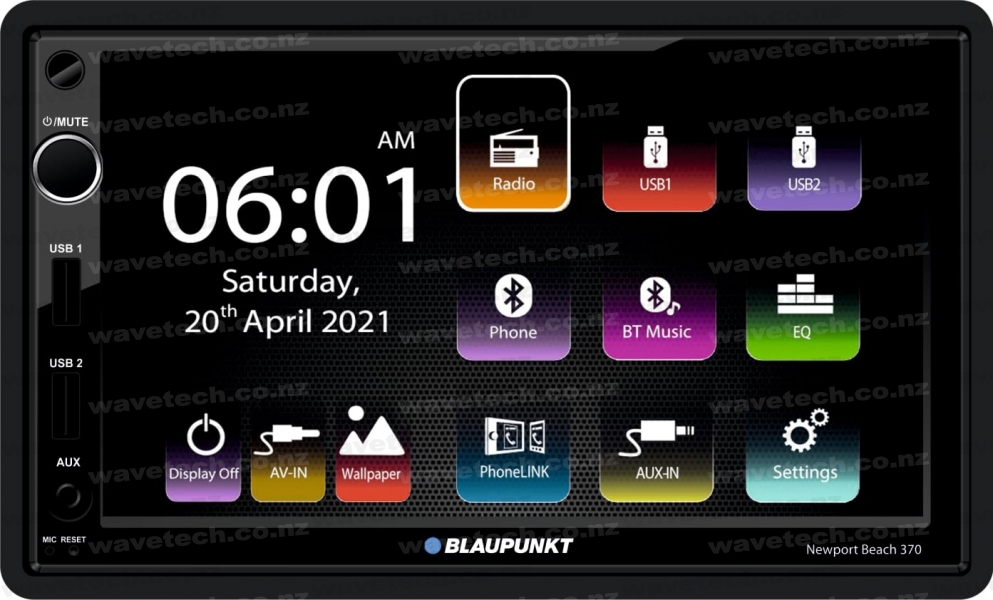

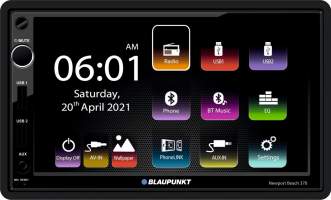

The Blaupunkt Newport Beach 370 feature's a large 7" touch screen with a convenient rotary volume control.
You can easily connect your smartphone for phone screen mirroring and stream music and receive phone calls via Bluetooth connectivity.
​Enjoy the convenience of two front USB ports and Multimedia playback options.
Features
• Mechless Unit (No CD/DVD Player)
• 7" WVGA 800x480 TFT Touch Screen Display
• Built-in Bluetooth ver 5.0 with Internal Mic (External 3.5mm Mic compatible and available)
• Dual Front USB and single front 3.5mm AUX Input
• Rear RCA Video outputs
• MP4/MPEG/AVI/MKV/FLV Video Playback
• Digital Rotary Volume Control
• PhoneLink for phone screen mirroring for Android and iPhone's
• AM / FM Radio (AM1,2 / FM 1,2,3 )
• 5 Sound Preset's Flat,Pop,Classic,Rock,Jazz,User with user adjustable 10 band EQ

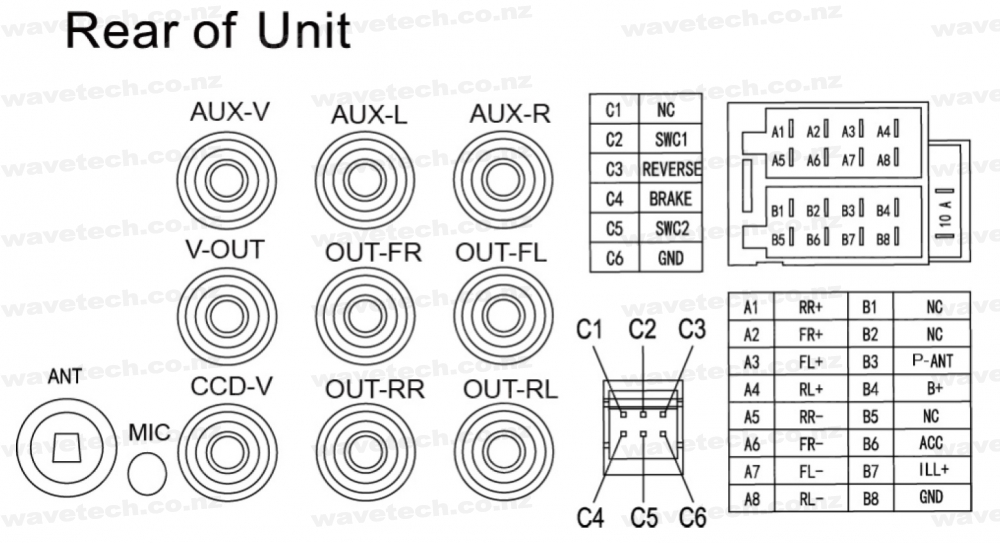

• RCA Rear AV Input Video,Left,Right
• RCA 4-Channel Pre-Amp Audio Outputs (Front L/R + Rear L/R)
• Reverse Camera Input RCA (Labelled "CCD-V") . Can accept PAL or NTSC signal
• Wired Remote Input
- with Learning Function
- see HERE for some common vehicle SWC position's
• Remote Control Included
• Iso Loom Connector built in
• Mounting Cage Included
Specifications
• Power Requirement: 12V DC Negative Ground (10.8V-16V acceptable)
• FM Tuning Range: 87.5 - 108.0 MHz (NZ frequency)
• AM Tuning Range: 531 - 1,602 kHz (NZ frequency)
• Speaker Output: 40W x 4 (4Ω) max power
Size
• Double Din Size
• Width: 178mm
• Height: 102mm
• Depth: 80mm (Short Body)
Install Notes
• The Blaupunkt Newport Beach 370 is a world model so please set initial settings to:
- Radio Area = Europe
• Bluetooth Pairing: Search on your phone for device "NEWPORT BEACH 370" or "BLAUPUNKT" Default Pairing Code = 1234 or 0000
• Note - No Subwoofer Pre-Amp RCA Output. If needed, feed full range RCA into amp with Low Pass Filter (LPF) for Subwoofer

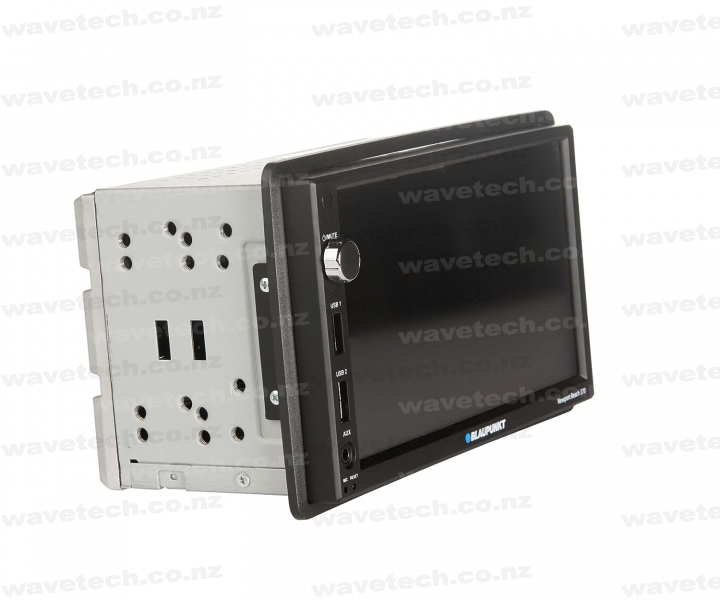

• Short Body Chassis design with Mounting cage , Release Keys and Trim Ring included
|
