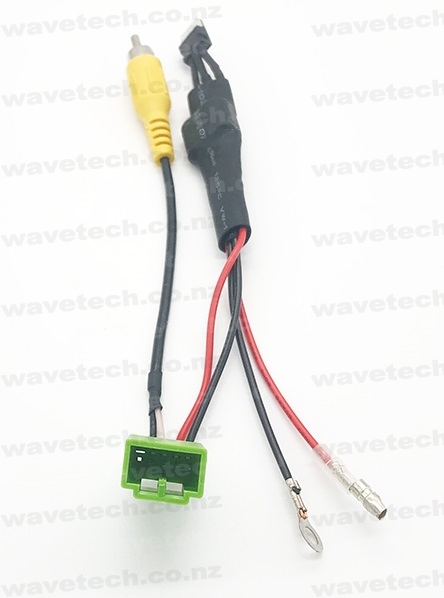

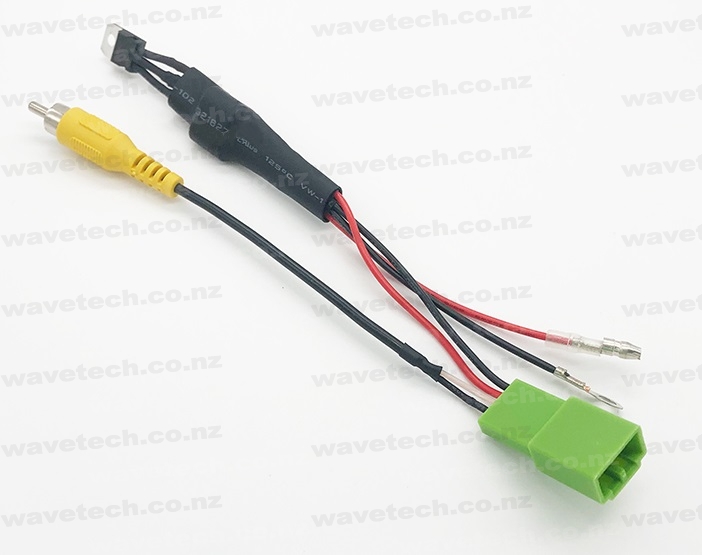

REV-MAZ-2 | Mazda Camera Retention with 12V to 6V Reducer
This adapter helps you to replace your factory radio and retain the factory Mazda reverse camera ( Mazda 6 volt camera system )
Features
• 12V to 6V reducer included to power factory Mazda cameras
• RCA male video plug for OEM Mazda camera signal in to after market Head Unit
• Connects to OEM green Mazda 5pin (4 pin's populated) camera vehicle loom
• May also suit Suzuki Vitara and Jimny models
Specifications
• Input Voltage: 12V DC
• Output Voltage: 6V
Wiring Instructions
• Red Wire (Input Side) -> +12V Input ( i.e Reverse light positive )
• Black Wire (Input Side) -> Common GND
• Yellow RCA male plug -> Camera input in to replacement head unit
