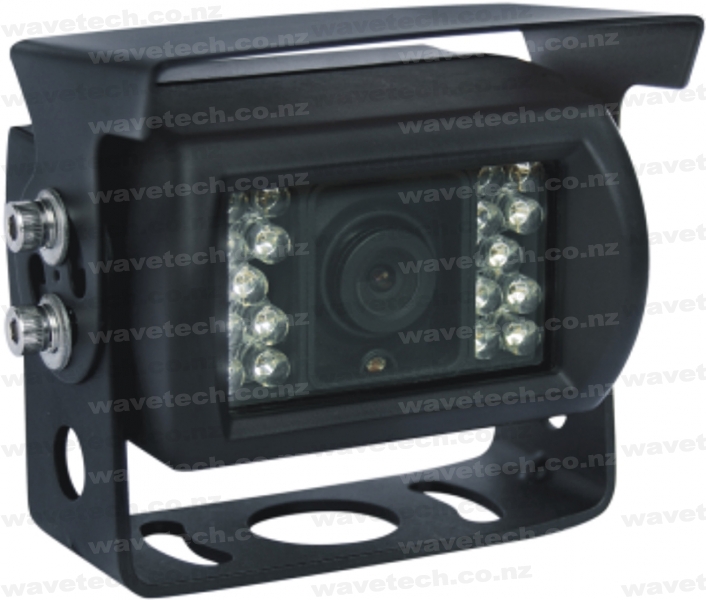

REVCAM5-RCA | Screw Mount Industrial Reverse Camera with RCA connection
Reversing cameras show the driver what’s behind the vehicle using a small video screen on the car’s dashboard or radio. Rear view cameras are now becoming a must not only for aiding in reversing... but as a major safety advantage.
Features
• No Grid Lines (Select monitor grid lines if required)
• Can be used as a Front or Reverse camera (Mirror or Non Mirror switchable via loop wire)
• High Resolution: 1000TVL (H68) resolution
• 1/3" CCD Lens
• Water Proof Rating: IP67
• Viewing Angle: 110 degrees
• 12V DC Operated (11-16 V allowable)
• Sun Shield and bracket mount
• Camera Size (without mount): 73x55x43 (WxDxH)

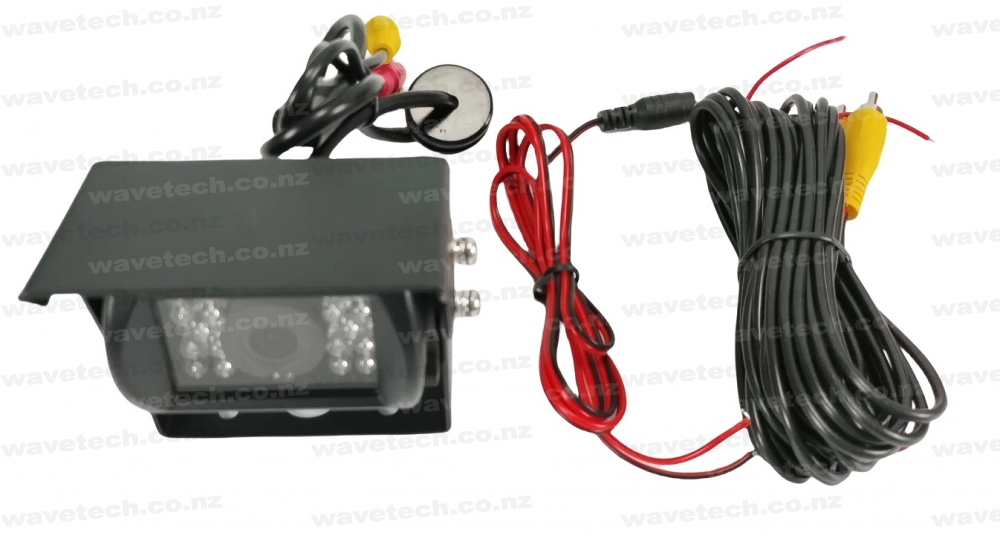

• 6m RCA Cable Included
Video Output
• Connection: RCA CVBS 1000TVL (H68)
• System: PAL
• Mirrored (Reversed) Image: Switchable (On/Off)
Note: This is only the camera and interconnecting cables. You will require a monitor to view the signal.
