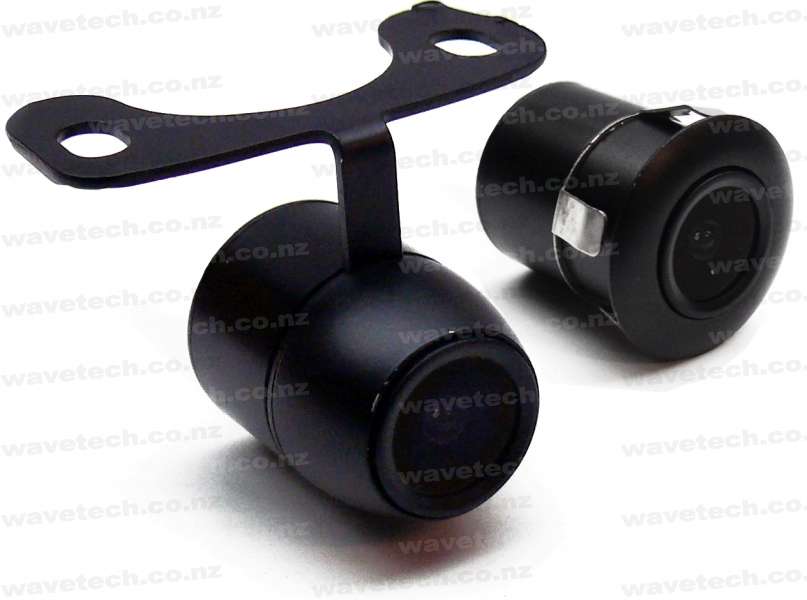

Butterfly Mount RCA 650TVL Reverse Camera | PAL

REVCAM8-P | Butterfly Mount RCA 650TVL Reverse Camera | PAL

Reversing cameras show the driver what’s behind the vehicle using a small video screen on the car’s dashboard or radio. Rear view cameras are now becoming a must not only for aiding in reversing... but as a major safety advantage.

• Butterfly Mount
• Switchable On or Off (default) Grid Lines
• Can be used as a Front (default) or Reverse Camera
• Small connector to allow for minimum hole size
• Wide 110 degree viewing angle

• Image Sensor: 1/3" PC3089 650TVL
• Water Proof Rating: IP68
• 12V DC Operated (11-16 V allowable)

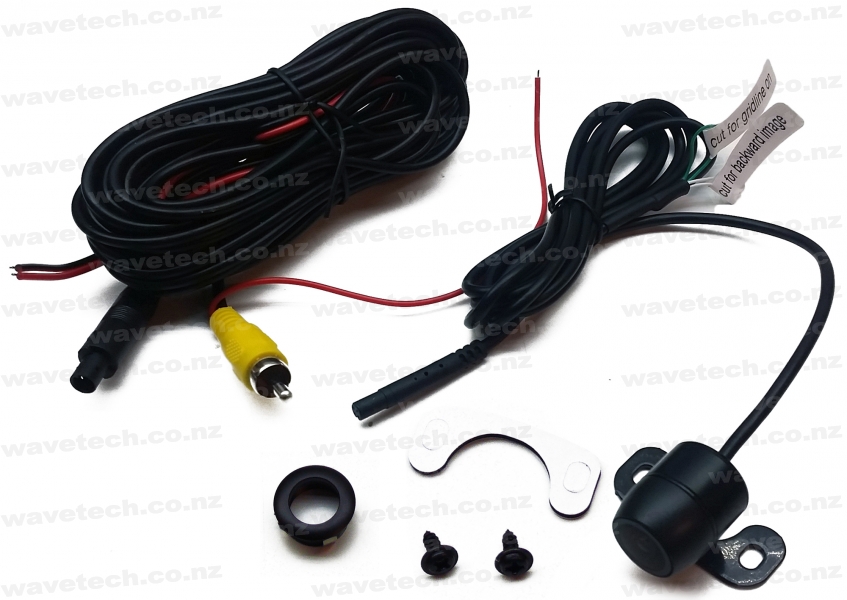

• 6m RCA cable with built-in trigger wire included

Video Output
• Connection: RCA
• System: PAL
• Distance Grid Lines: No (switchable)
       - Cut green wire to switch on gridlines.
• Mirrored (Reversed) Image: No (switchable)
    - Cut white wire to switch on mirrored

Note: This is only the camera and interconnecting cables. You will require a monitor to view the signal.
