Alpine iXE-W400E | Mechless Receiver with Bluetooth & Dual USB
The iXE-W400E provides the best of in-car entertainment experiences which you can truly relax and have fun all the way journey. With capacitive touch screen, you will be able to control display with a very light touch of 2 fingers for smoother control tracks and sound volume even while you drive. You can easily connect smartphone to Mobile Media Station onto head unit via HDMI connectivity which is providing High-resolution audio and video files.
Features
• Mechless Unit (No CD/DVD Player)

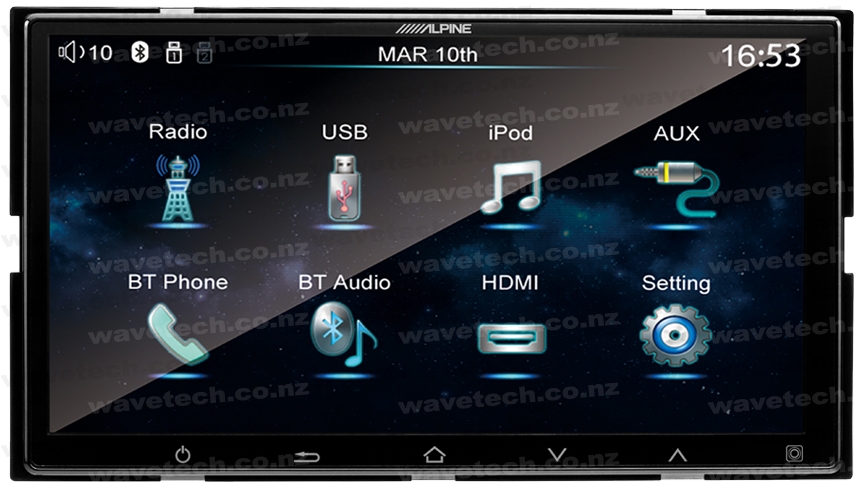

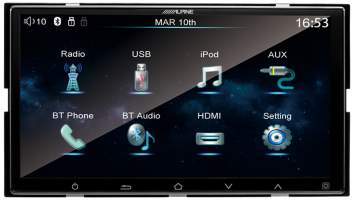

• 6.95" WVGA 800x480 Touch-Screen Display
• Built-in Bluetooth (with Audio Streaming)
• External Microphone Included (3.5mm)
• Dual Rear 1A USB Inputs
• Rear HDMI Input
• AVI/WMV/MP4/MP4/H.264/MP3/AAC/WAV/FLAC/WMA/JPEG/GIF Playback
• One-Touch Activated Camera
• RDS
• iPod / iPhone / Android via Bluetooth
• iPod / iPhone via USB (Limited Models)
• 5 Bluetooth Device Memory
• 2 Finger Touch Control
• Built-in AM / FM with RDS
• 10-Band Graphic EQ
• 6 Pre-set Curves
• RCA Audio Input (use AUX2 for 3.5mm input)
• RCA Video Output (NTSC)
• RCA Audio Outputs (Front L/R + Rear L/R)
• Subwoofer RCA Output (see install notes below)
• Centre Channel RCA Output (see install notes below)
• Reverse Camera Input
- with adjustable grid-lines overlay
• Wired Remote Input
- with Learning Function
- see HERE for some common vehicle SWC positions

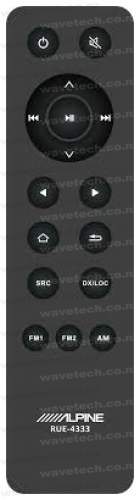

• Remote Control Included (CR2025 Battery Included)

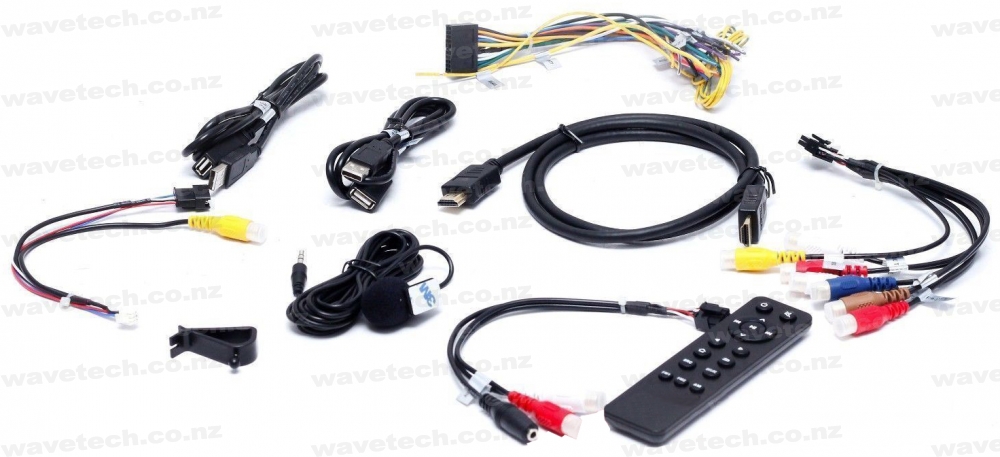

• HDMI Cable Included
• USB Extension Cable x2 Included
• Please Note - No Iso loom adapter available. Install using supplied wiring loom connector.
• Mounting Cage Included
Specifications
• Power Requirement: 12V DC Negative Ground (11V-16V acceptable)
• FM Tuning Range: 87.5 - 108.0 MHz (NZ frequency)
• AM Tuning Range: 531 - 1,602 kHz (NZ frequency)
• Speaker Output: 45W x 4 (4Ω)
• Speaker Impedance: 4Ω (4-8Ω acceptable)
Size
• Standard Double Din Size
• Width: 178mm
• Height: 100mm
• Depth: 173mm
Install Notes
• This unit can switch to pre-amp only mode which disables it's 4x speaker outputs.
Enable this when running all speakers from amps and not using the radio speaker outputs.
The setting is called "Audio Pre-out" and is off by default
• Amp output wire is only active when unit is in above pre-amp only mode.
Use P.ANT wire instead if in standard mode
• Subwoofer / Centre RCA outputs are only active when the unit is in above pre-amp only mode.
Use Front / Rear RCA outputs instead if in standard mode
