JVC KW-M180BT | Mechless Receiver with USB & Bluetooth

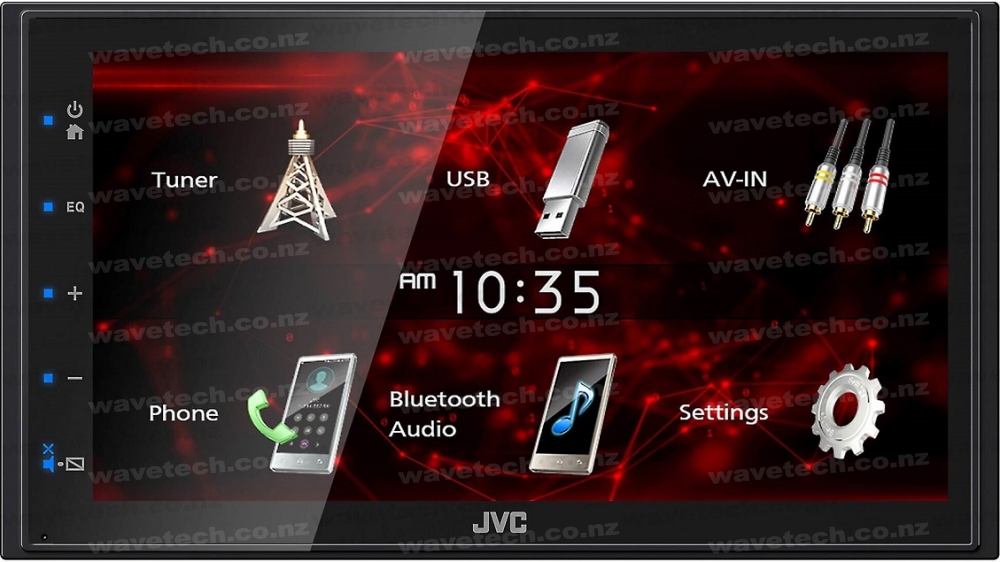

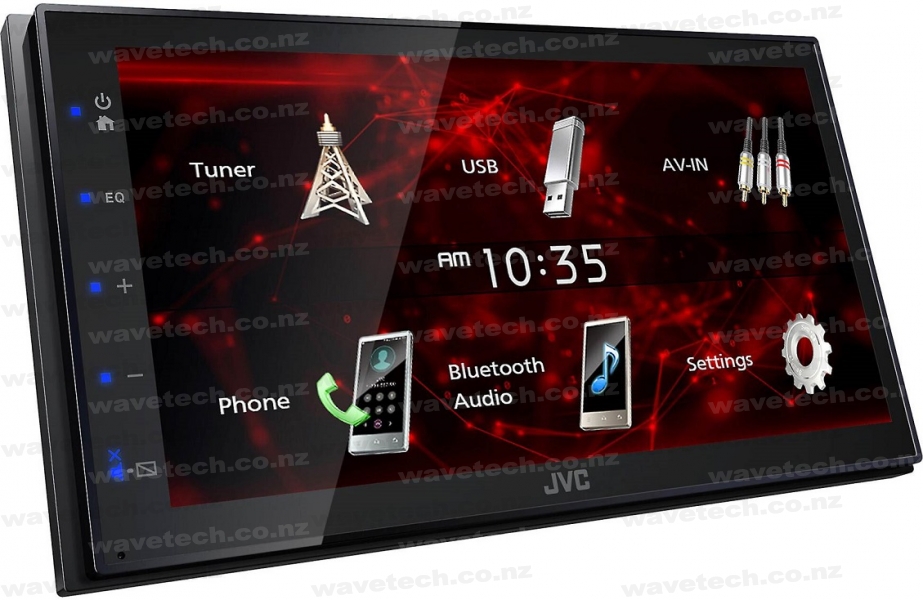

The JVC KW-M180BT is a mechless Digital Media Receiver with a 6.8 inch WVGA Capacitive monitor.
USB mirroring for Android is built into the KW-M180BT which allows most commonly used apps to be mirrored from compatible devices onto the KW-M180BT's screen.
The JVC KW-M180BT features improved sound quality when using Bluetooth to call hands free and stream music.
If that isn't enough the KM-180BT also has many other features such as time alignment and an input for an optional reversing camera to be connected.
Features
• Mechless Unit (No CD/DVD Player)
• 6.8" Wide VGA Capacitive Touch Screen Display
• USB Mirroring (Android Only)
• Fast Bootup feature ensuring ready to use shortly after powering on
• Built-in Bluetooth v4.2 (with Audio Streaming)

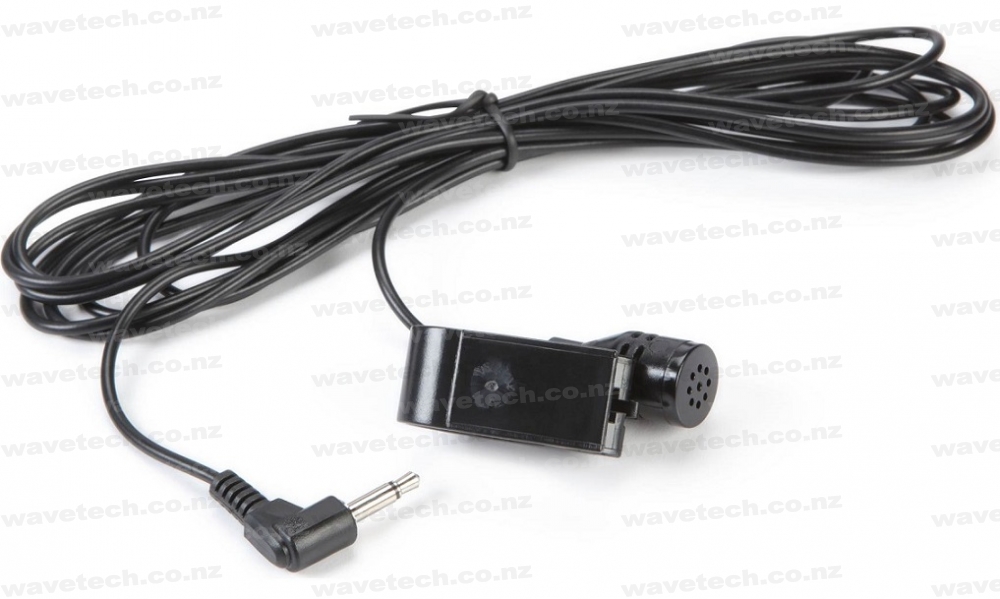

• External Microphone Included (3.5mm)
• Rear 1.5 amp USB Input ( iPhone/Android Compatible )
• Rear Audio/Video RCA Input (use AUX2 for 3.5mm audio input)
• Full HD Video Playback
• MP3/WMA/WAV/AAC/FLAC/H.264/MPEG 1,2,4/MKV Playback Compatible
• AM/FM Radio Tuner with RDS
• Key Illumination
• 13-Band EQ
• Bass Boost and Loudness
• Digital Time Alignment (DTA)
• Subwoofer Control
• Brightness Control
• Shallow Chassis Design (only 75mm)
• RCA 2 Volt Outputs (Front L/R + Rear L/R + Subwoofer Mono)
• Rear Reverse Camera Input
• Rear Video Output
• Includes outer trim piece ( 186mm x 117mm outer dimensions )
• Rear Wired Remote Input
- with Learning Function
- see HERE for some common vehicle SWC positions
Specifications
• Power Requirement: 12V DC Negative Ground (11V-16V acceptable)
• FM Tuning Range: 87.5 - 108.0 MHz (NZ frequency)
• AM Tuning Range: 531 - 1,611 kHz (NZ frequency)
• Speaker Output: 45W x 4 (4Ω)
• Speaker Impedance: 4Ω (4-8Ω acceptable)
Size
• Standard Double Din Size
• Width: 178mm
• Height: 100mm
• Depth: 75mm
Notes: This unit does not include a IR remote control
