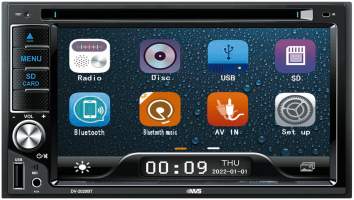

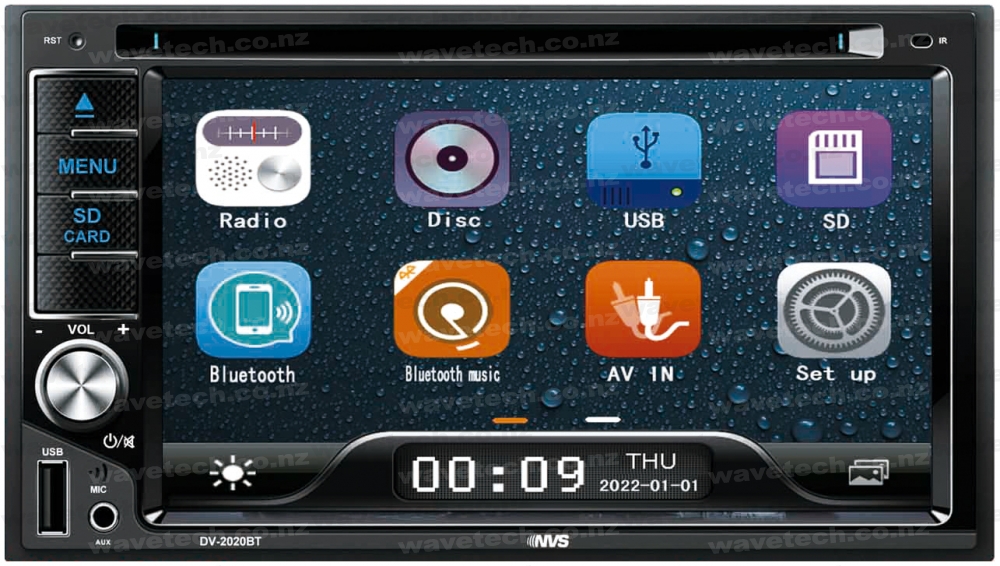

NVS DV-2020BT | DVD/CD/MP3/DIVX Touch Screen Receiver with Bluetooth

Features
• 6.2" Touch Screen Display
• Built-in Bluetooth (with Audio Streaming)**
• Built-in Microphone
• DVD/CD Player
• Front USB Input*
• Front 3.5mm AUX Input
• Front Micro SD Card Input

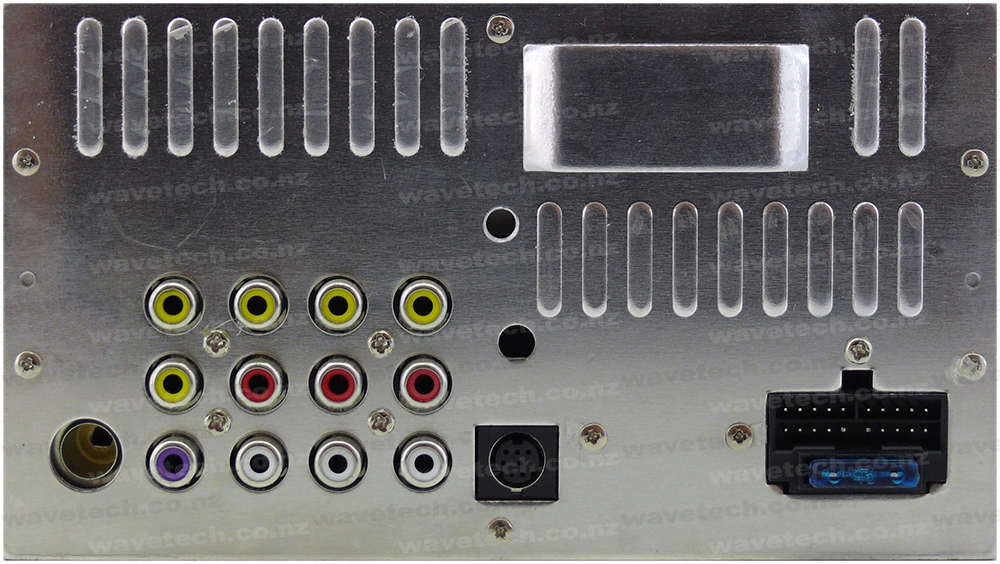

• Rear Audio/Video Input
• Front & Rear Reverse Camera Inputs
• Rear Wired Remote Input
   - with Learning Function

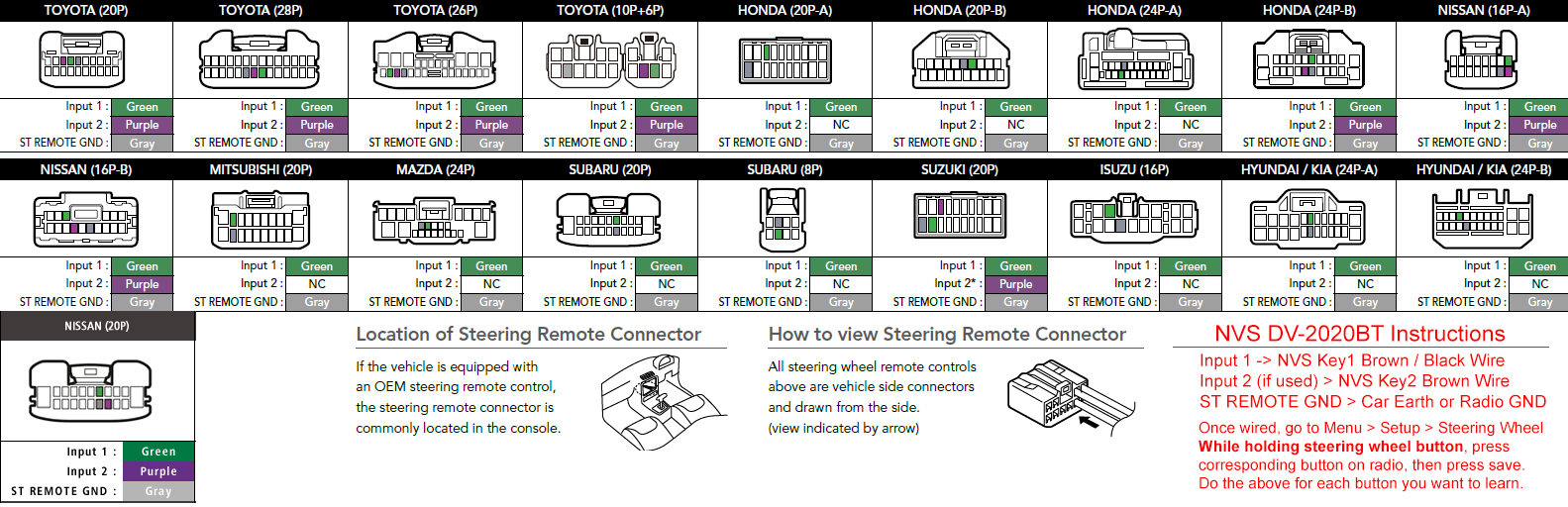

   - see HERE for some common vehicle SWC positions

• 2x Rear Video Outputs
• RCA Audio Output (2 Pair)
• Subwoofer Output
• Selectable car boot logo
• MP3/WMA/MP4/DIVX Playback (CD/DVD/USB/SD)
• Electronic Anti-skip Protection
• Rotary Volume Control
• 30 Station Pre-sets
• Electronic Encoder Audio (Volume/Bass/Treble/Balance/Fader) Control
• Selectable EQ Curves (Pop/Rock/Classic/Jazz/User)
• ID3 Tag Display
• AM/FM Tuner

• Full 12 Month Warranty

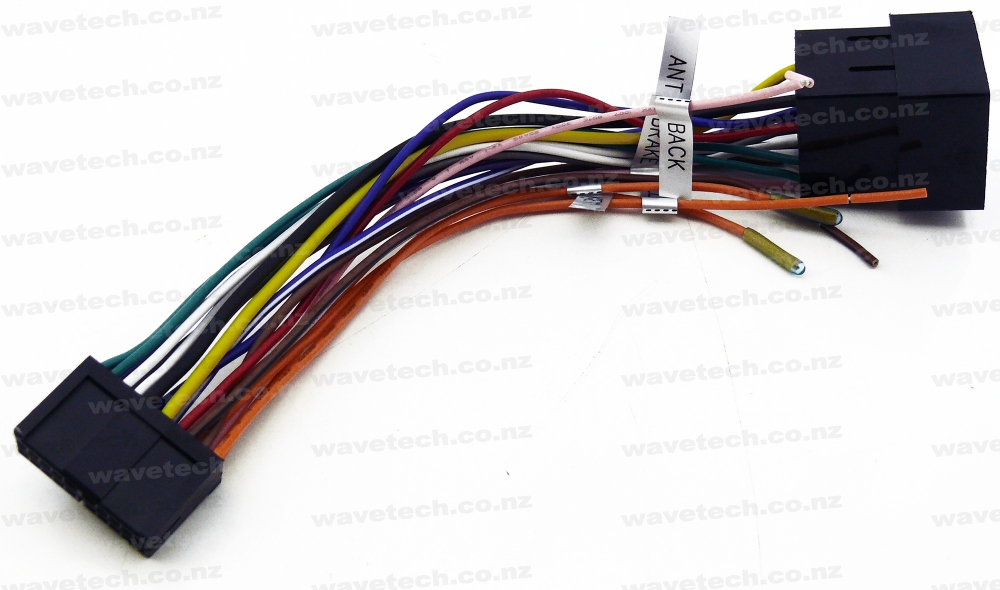

• ISO Adapter Included
• User Manual Included

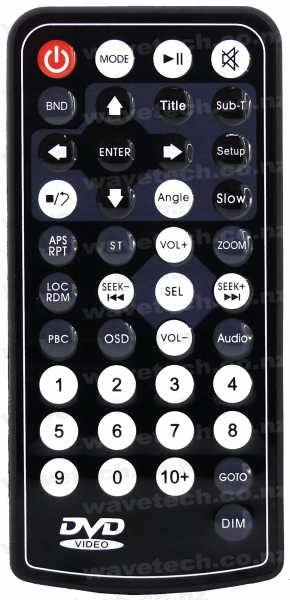

• Remote Control (requires 2x AAA - not included)

Please Note
This unit does not come with a mounting cage or trim.

Specifications
• Power Requirement: 12V DC Negative Ground (11V-16V acceptable)
• FM Tuning Range: 87.5 - 108.0 MHz (NZ frequency)
• AM Tuning Range: 531 - 1,602 kHz (NZ frequency)
• Speaker Output: 50W x 4 (4Ω)
• Speaker Impedance: 4Ω (4-8Ω acceptable)

Size
• Standard Double Din Size
• Width: 178mm
• Height: 100mm

* USB port is not compatible with iPod/iPhone/Android devices
  However, you may still be able to connect your device using the front AUX

** For Bluetooth, the radio will show as BUS-DVD and the code is 0000.

**The default radio password is 0000 followed by the enter key (to the right of the 9 digit)

User manual
