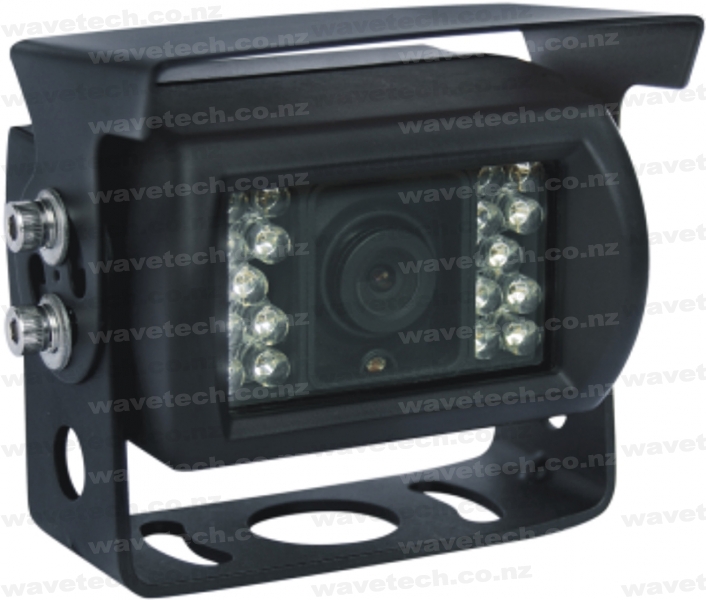

REVCAM5 | Screw Mount Reverse Camera with DIN connection
Reversing cameras show the driver what’s behind the vehicle using a small video screen on the car’s dashboard or radio. Rear view cameras are now becoming a must not only for aiding in reversing... but as a major safety advantage.
Features
• High Resolution: 600TV Lines
• Image Size: Sony 1/3" CCD
• Water Proof Rating: IP67
• Viewing Angle: 110 degrees
• Video Connection Type: DIN Plugs (4-pin)
• 12V DC Operated (11-16 V allowable)
• 24V Vehicle Compatible (only when used with REVMON2)
• Sun Shield
• Camera Size (without mount): 73x55x43 (WxDxH)
Please Note:

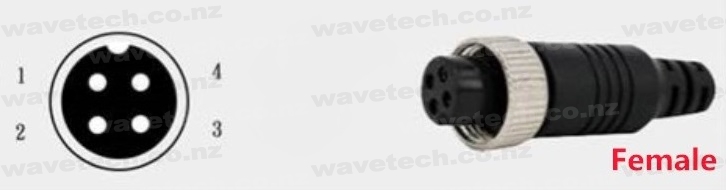

• Connection of our cameras 4-pin Din (Female)
• Connection of our 4-pin Monitors (Male)
• Connection of our 4-pin extension cables (Male to Female)
Video Output
• Connection: 4-pin Din
• System: PAL
• Distance Grid Lines: No
• Mirrored (Reversed) Image: Yes
Note: This is a camera ONLY. You will require a monitor and interconnecting cables to view the signal.
