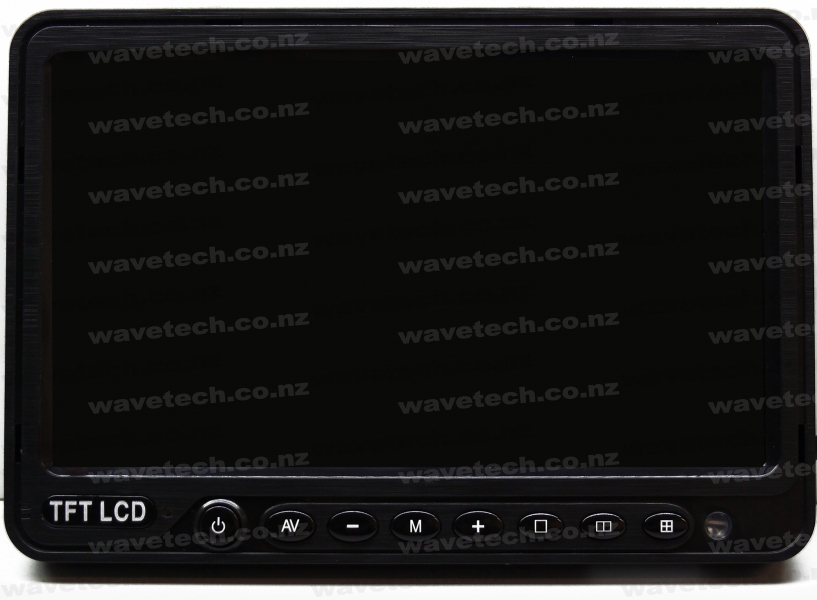

REVMON2 | 7" Reverse Camera Monitor with 3x DIN Inputs
Reversing cameras show the driver what’s behind the vehicle using a small camera mounted on the rear of the vehicle. Reversing cameras are now becoming a must, not only for aiding in reversing... but as a major safety advantage.
Features
• Screen Size: 7 inch Hannstar TFT LCD monitor
• Removable sunvisor
• Mounting bracket included
• Retentive screen settings
• Adjustable screen flip/mirror, contrast, brightness
• Screen Ratio: 16:9
• Contrast: 1:500
• Resolution: 800x480
• PAL & NTSC (auto switching)
• Video Connection Type: DIN (4-pin)
• Operating Voltage: 9V-40V
• Power Consumption: 2.4W (200mA at 12V)

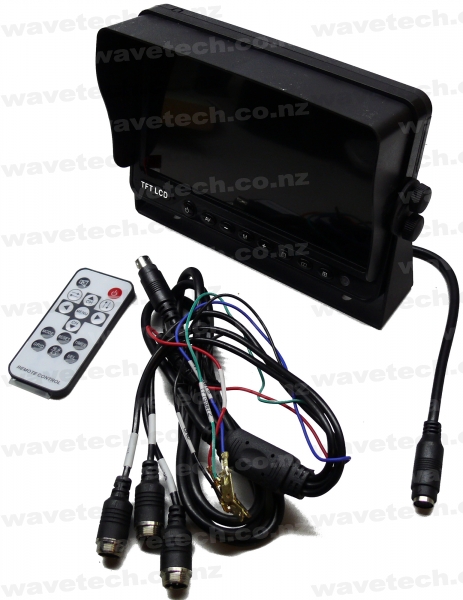

• 3 Video Inputs
• Green: AV2 Trigger
• Blue: AV3 Trigger
• PAL/NTSC Auto Switch
• Cabin Auto-dimming screen
Please Note:
• Connection of our cameras 4-pin Din (Female)
• Connection of our 4-pin Monitors (Male)
• Connection of our 4-pin extension cables (Male to Female)
